Portainer Docker

Docker

Portainer Server Deployment

docker volume create portainer_data
docker run -d -p 8000:8000 -p 9000:9000 --name=portainer --restart=always -v /var/run/docker.sock:/var/run/docker.sock -v portainer_data:/data portainer/portainer-ce:2.6.3

Portainer Agent Only Deployment

Run the following command to deploy the Agent in your Docker host.

docker run -d -p 9001:9001 --name portainer_agent --restart=always -v /var/run/docker.sock:/var/run/docker.sock -v /var/lib/docker/volumes:/var/lib/docker/volumes portainer/agent:2.6.3

Docker Compose

portainer.yml

Endpoints

Add endpoint

Portainer agent

  • Name
  • Endpoint URL

Docker API

  • Name
  • Endpoint URL

sudo vi /usr/lib/systemd/system/docker.service

#ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix:///var/run/docker.sock
sudo systemctl daemon-reload
sudo systemctl restart docker
ss -ntulp|grep 2375

Edge Agent

Edge Agent Guide

  • Name
  • Portainer server URL
docker run -d -v /var/run/docker.sock:/var/run/docker.sock -v /var/lib/docker/volumes:/var/lib/docker/volumes -v /:/host -v portainer_agent_data:/data --restart always -e EDGE=1 -e EDGE_ID=xx -e EDGE_KEY=xx -e CAP_HOST_MANAGEMENT=1 --name portainer_edge_agent portainer/agent:2.6.3

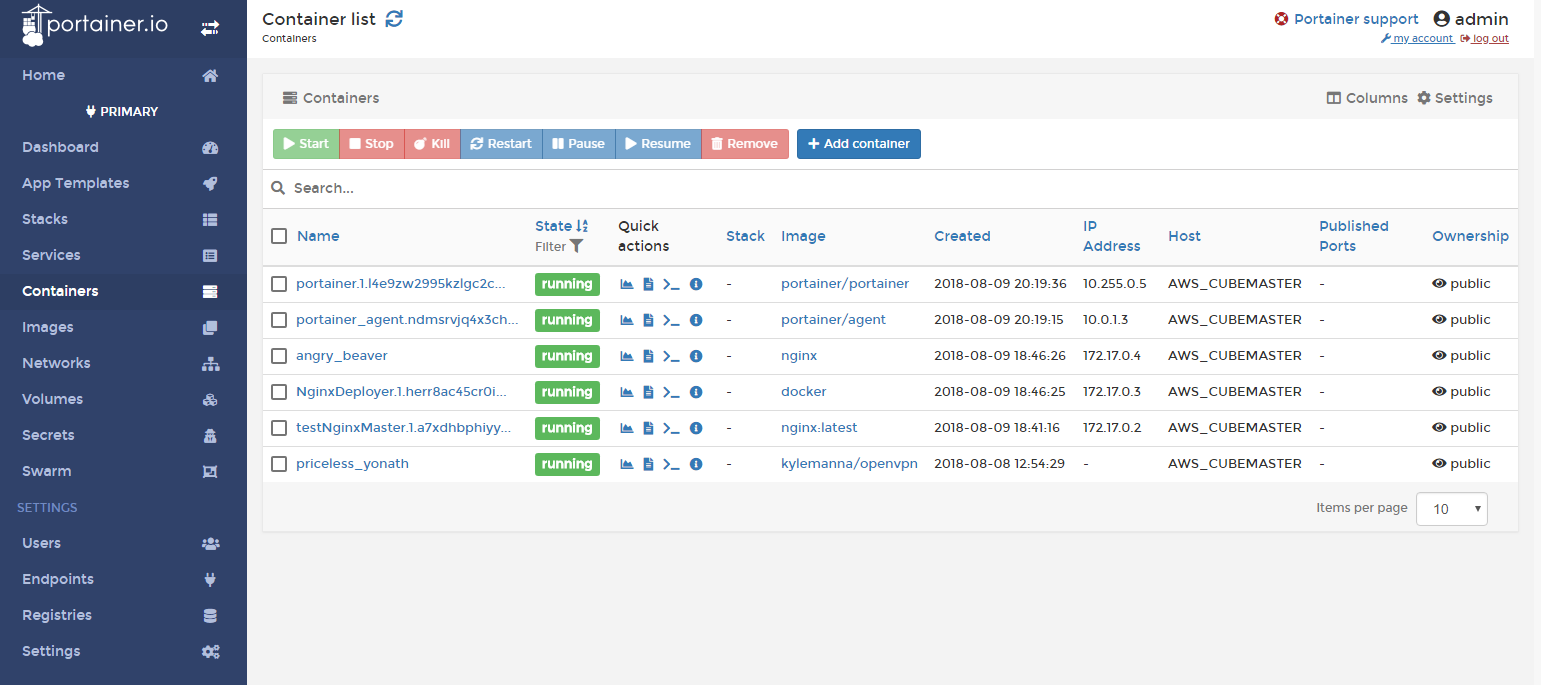

Screenshots

https://user-images.githubusercontent.com/3629071/43952333-ee279786-9c95-11e8-9e2f-0ffd5bd6ba6f.png
